Lazy Trader / Docs

Box-Fractal model

A model based on fractal highs and lows, confirmation logic, and Fibonacci-relative entry and stop placement.

Section video

The Box-Fractal model uses one detected fractal as a compact structural box. The fractal high and fractal low become the reference base, effectively acting as the 0 and 1 of an internal Fibonacci map from which entry and stop are derived.

The important nuance is confirmation. The model does not trade simply because a fractal existed. Price must first move beyond one of the fractal extremes according to the chosen confirm timeframe and confirm-price mode, and only then are entry and stop calculated from that same structural base.

Main parameters you usually tune

  • The timeframe where fractals are searched.
  • The fractal type and the candle count: 3 or 5.
  • confirmation: timeframe plus price mode; the confirm timeframe cannot be higher than the fractal timeframe itself.
  • lifetime: how many minutes the formation remains relevant from the moment the fractal appears.
  • PD-entry and stop level inside the box-derived Fibonacci space.

Why traders like this model

It gives a compact, mechanical base for both entry and stop.

It is especially useful when you want a model to react to a discrete structural object rather than to a broad discretionary interpretation.

It works well in setups where entry should be allowed only after a structural extreme is confirmed rather than on the bare existence of that extreme.

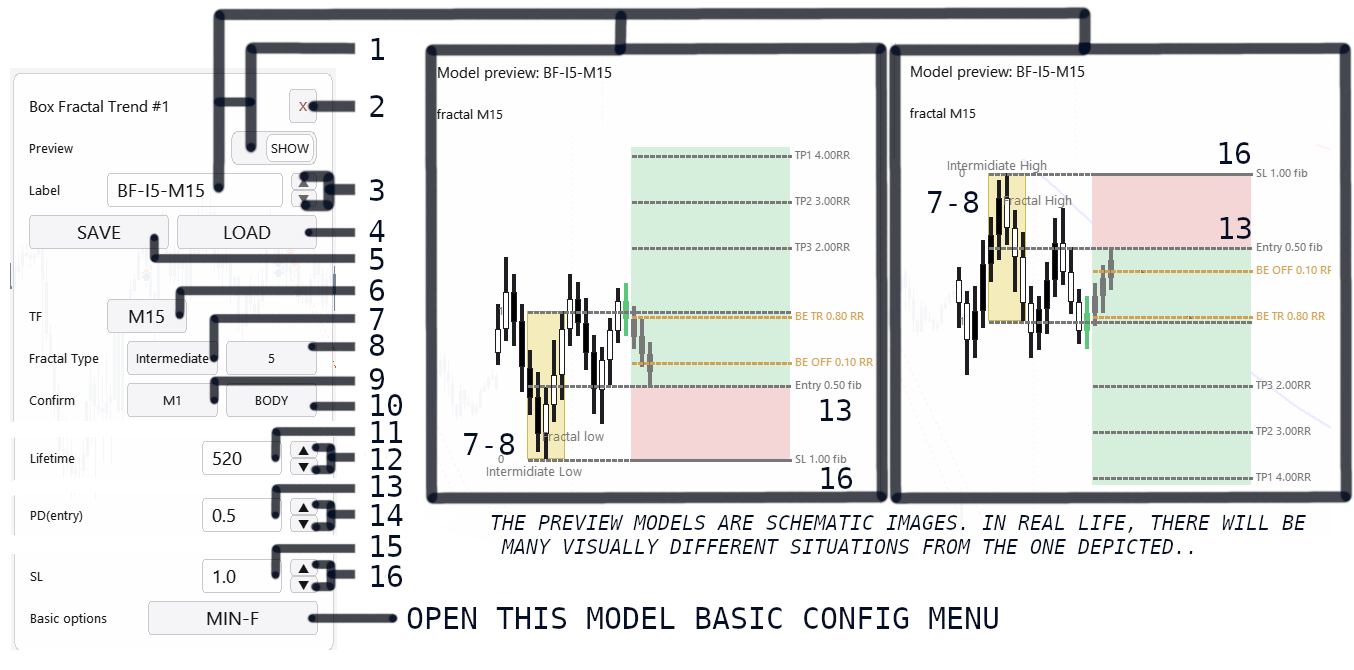

Box-Fractal config in Lazy Trader
